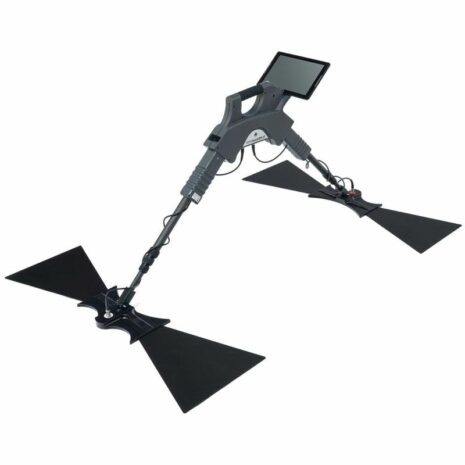

OKM Gepard GPR 3D Ground Scanner With Antennas & Tablet

OKM Gepard GPR 3D Ground Scanner With Antennas & Tablet

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations.

The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters (131 ft). The agile and compact unit can easily be operated by a single user via Android Tablet PC.

The Gepard ground penetrating radar is using a multiple transmission frequency range starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

The measured data of the ground penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on screen.

The software offers the option of integrating a GPS signal or Google Maps, filtering automatically and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS all scan positions can be stored along with the scan data.

FEATURES

• Flexible & powerful: Ground Penetrating Radar using an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters
• Depth: Customers found objects up to 40 meters deep
• Use cases: archaeology, geotechnical engineering, treasure hunting
• Operating modes: Ground Scan, Live Stream
• Detectable objects: underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations
• 2D Visualization
• 3D Visualization
• 3D Ground Scan
• Colour display / Touchscreen
• GPS (disengageable)
• Height adjustment
• Internal memory
• Live Stream
• Multilingual operation
• Rechargeable high-capacity battery
• Speaker
• Wireless technology

CONTROL UNIT SPECIFICATIONS

• Dimensions (H x W x D): 450 x 260 x 130 mm
• Weight: approx. 1.6 kg
• Input voltage (max.): 8.4 V DC / 1.0 A
• Operating temperature: –20°C – 55°C
• Storage temperature: –25°C – 60°C
• Waterproof: No
• Operating time: approx. 4 hours
• Air humidity: 5% – 70%
• Feedback: acoustic, visual
• Protection Type: IP 20
• Data Transmission Technology: WiFi, 2.4 GHz
• Transmission Frequency Range: 60 – 300 MHz
• Timing/Sampling Adjustments: 4 Levels
• Complete Cycle Measurements: 9 per second

TELESCOPIC SHAFT SPECIFICATIONS

• Dimensions (H x W x D): 70 x 60 x 590–1630 mm
• Weight: 0.80 kg
• Operating temperature: –20°C – 55°C
• Storage temperature: –25°C – 60°C
• Waterproof: No
• Air humidity: 5% – 70%
• Protection Type: IP 20
• Internal Battery: 7.26 V / 2600 mAh

TRIANGULAR ANTENNA (UNSHIELDED) SPECIFICATIONS

• Dimensions (H x W x D): 1010 x 330 x 50 mm
• Weight: 1.50 kg
• Operating temperature: –20°C – 55°C
• Storage temperature: –25°C – 60°C
• Waterproof: No
• Air humidity: 5% – 70%
• Protection Type: IP 20

Uses

• Agriculture
• Archaeology
• Cavity Detection
• Forensics
• Geotechnical Engineering
• Militaria Detection
• Public Services
• Treasure Hunting
• OKM Search Services

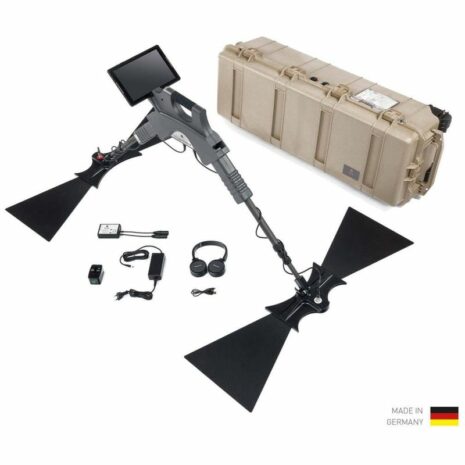

Package Includes

• 1x Control unit
• 1x GPR receiving unit with 2 triangular antennas
• 1x GPR transmitting unit with 2 triangular antennas
• 2x Telescopic shaft
• 1x Android Tablet PC
• 1x Waterproof and shock resistant Pelican case
• 1x Bluetooth headphones
• 1x Charging adapter and power supply
• 1x Travel adapter
• 1x User’s manual
